Freedare Saiga
ALL-TERRAIN FAT TIRE OFF-ROAD MTB E-BIKE
Model: FD-SAIGA
Features
750W Rated Power
48V 20AH/960WH, Samsung 21700 Battery Cells
Anti-theft System connected to movement monitoring and alarm
GPS Tracking with 4G communication and Qualcomm chip
Torque Sensor for better acceleration experience
All-Terrains, super comfortable riding experience
30° Climb Slope (Pedal assist)
UL Certified
ALL-TERRAIN FAT TIRE OFF-ROAD MTB E-BIKE
Model: FD-SAIGA
Features
750W Rated Power
48V 20AH/960WH, Samsung 21700 Battery Cells
Anti-theft System connected to movement monitoring and alarm
GPS Tracking with 4G communication and Qualcomm chip
Torque Sensor for better acceleration experience
All-Terrains, super comfortable riding experience
30° Climb Slope (Pedal assist)
UL Certified
ALL-TERRAIN FAT TIRE OFF-ROAD MTB E-BIKE
Model: FD-SAIGA
Features
750W Rated Power
48V 20AH/960WH, Samsung 21700 Battery Cells
Anti-theft System connected to movement monitoring and alarm
GPS Tracking with 4G communication and Qualcomm chip
Torque Sensor for better acceleration experience
All-Terrains, super comfortable riding experience
30° Climb Slope (Pedal assist)
UL Certified
DIMENSIONS
| Parts | Size |
| Handlebar Height | 43.3" |
| Handlebar Reach | 22" |
| Total Length | 76.6" |
| Wheelbase | 47" |
| Seat Tube Length | 18.1" |
| Maximum Seat Height | 39.7" |
| Minimum Seat Height | 34.6" |
| Chain stay Length | 18.9" |
| Wheel Diameter | 28.3" |
| Head Tube Length | 4.7" |
| Handlebar Length | 24.4" |
| Standover Height | 29.92" |
PERFORMANCE
| Motor Power | 750W Rated Power |
| Top Speed | 28 MPH Speed |
| Max Range | 90 Miles with Pedal Assist |
| Max Load Capacity | 330 lbs |
| Bike Weight | 79.3 lbs (Battery10.6lbs) |
| Recommended Rider Height | 5’6”~6’5” |

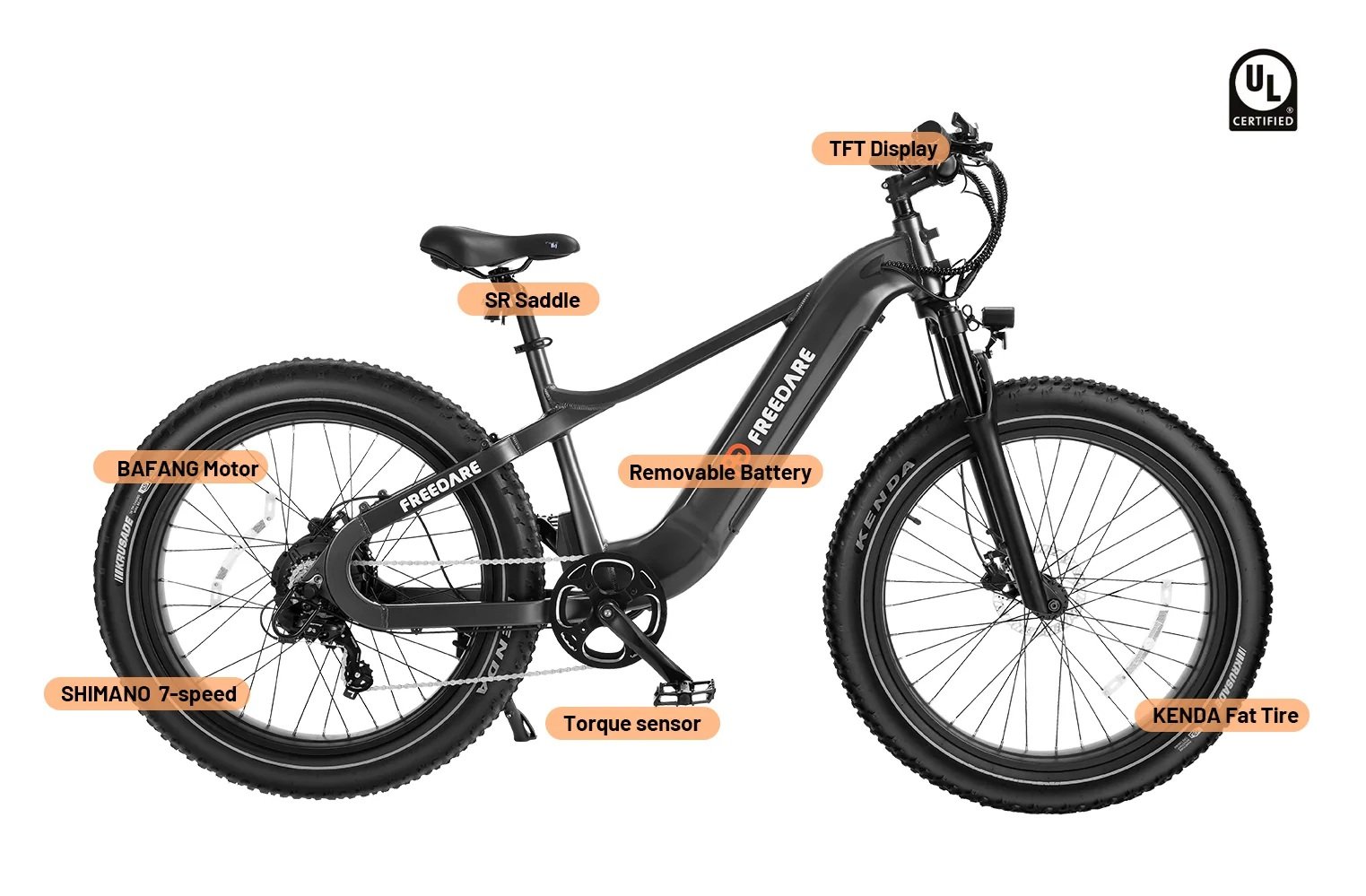

TECHNICAL SPECIFICATIONS
| Component | Parameter |
| Motor | 750W BAFANG Geared Hub Motor, Rated 750W, Peak 1000W, Rated torque 20N.M, Maximum torque 80N.M |
| Battery | 20Ah, 960wh, Samsung 21700 Battery Cells |
| Charger | 54.6V 3A |
| Charging Method | Charge directly on the bike ; Remove the battery to charge |
| Sensor | Torque Sensor |
| Tire | Kenda 26"x4.0" Fat Tires |
| Throttle | Thumb Throttle |
| Front Light | APP control |
| Fork | Adjustable lockable aluminum alloy suspension Fork |
| Saddle | Comfortable Wide SR Saddle |
| Kickstand | Side Kickstand |
| Waterproof rate | IPX5 |
| Frame material | AL-6061 aluminum alloy |
| Display | TFT Color screen with USB interface (with speedometer, odometer, pedal assist level, etc.) |
| Derailleur | SHIMANO 7-speed gear shift system |
| Chain wheel | High-strength metal crankset, including CNC aluminum alloy guard, crankset parameters 44 teeth |
| 3 riding method | Pedal assist; Throttle only; Pedal only |
| Brake system | Hydraulic brake |
| UL certification | UL 2271 & UL 2849 |
